Coilers for the production of inductor coils-FTU

  • Model：FORMINGTECH-FTU
Inquiry
Please contact Formingtech to obtain a quotation on this product.
Height & Talent Co., Ltd. (Formingtech®)
Address：1F-2, No.77, Sec.1, Xintai 5th Rd. Xizhi Dist., New Taipei City, 22101, Taiwan
Phone：+886-2-26983788
Fax：+886-2-26983787
Email：info@formingtech.com

    Product Introduction

    FTU Application





    Benefits FTU

    (1) Significant increase in performance ensures optimized unit costs, especially in large-volume production
    (2) Highest quality, repeat accuracy and energy efficiency thanks to state-of-the-art drive technology
    (3) Application possibilities are more flexible and set-up times are shorter due to WAFIOS WPS 3.2 EasyCam
    (4) High compatibility with existing sets of tools from the FTU series
    (5) Insulation stripping device for the production of copper coils can be used (option)

     FTU 1.5
     Spring steel wire diameter (according to DIN EN 10270-1 / -2 and -3)      0.2 - 1 mm
     Enameled copper wire diameter 0.3 - 2 mm
     Height of spring body / copper coil body max. 90 mm
     Diameter of coiling mandrel d, max. 15 mm
     Length of revolving first leg  max. 50 mm
     Max. output, depending on spring shape 200 Springs/min

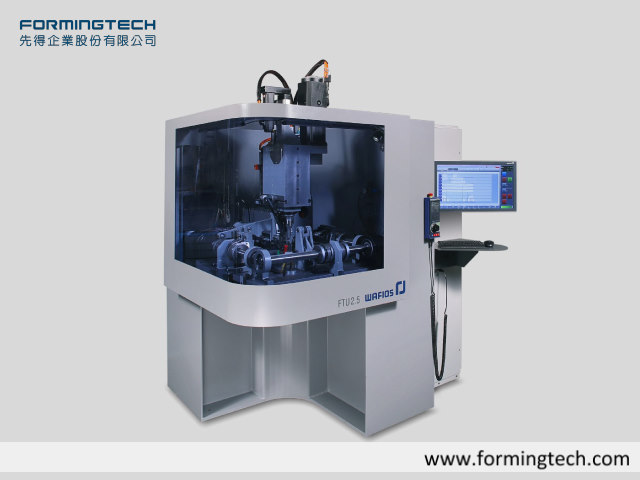

     FTU 2.5
     Spring steel wire diameter (according to DIN EN 10270-1 / -2 and -3)      0.5 - 2.2 mm
     Enameled copper wire diameter 1 - 4 mm
     Height of spring body / copper coil body max. 120 mm
     Diameter of coiling mandrel d, max. 25 mm
     Length of revolving first leg max. 120 mm
     Max. output, depending on spring shape 120 Springs/min
