Hairpins and Stator Connection Assemblies-FMU E

  • Model：FORMINGTECH-FMU E
Inquiry
Please contact Formingtech to obtain a quotation on this product.
Height & Talent Co., Ltd. (Formingtech®)
Address：1F-2, No.77, Sec.1, Xintai 5th Rd. Xizhi Dist., New Taipei City, 22101, Taiwan
Phone：+886-2-26983788
Fax：+886-2-26983787
Email：info@formingtech.com

Product Introduction











Benefits FMU E Series

(1) The new FMU E series is a unique machine concept for the production of hairpins and stator connection assemblies. It complements the successful FMU series in the e-mobility area.
(2) The simulation of the bending process opens new possibilities in the e-mobility sector, e.g. as a tool for feasibility analyses or collision control.
(3) The tool system for hairpins combines active rotary-draw bending with the agility of conventional wire bending tools. It prevents the material from slipping and increases the quality of complicated geometries.
(4) The newly developed infeed unit prevents deformations of the profiled material and enables - together with the tool system - the positioning of end legs.
(5) Our programming system WPS 3.2 EasyWay offers easy, geometrical programming and a clearly arranged overview of the materials and tools used.
(6) The production process of the FMU E series can be complemented by insulation stripping, burr-optimized cutting and chamfering modules.

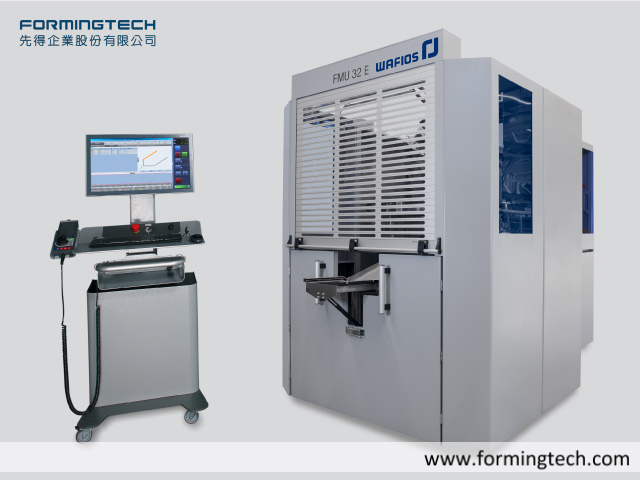

 FMU 32 E
 Tensile strength max  400 N/mm²
 Cross section max.  20,25 mm
 Thickness max.  4,5 mm
 Width max.  8,0 mm
 Bend-back clearance max.  250 mm
 Stroke, vertical table  + 70 / - 120 mm
 Stroke, vertical table  + / - 90 mm
 Stroke, slide  95 mm
 Dimension w x d x h  1600 x 2300 x 2250 mm
 Weight without pay-off unit  ca. 3600 kg
 Upgradable to max. CNC axes        24
 FMU 40 E
 Tensile strength max  400 N/mm²
 Cross section max.  30,25 mm
 Thickness max.  5,5 mm
 Width max.  10,0 mm
 Bend-back clearance max.  450 mm
 Stroke, vertical table  + 55 / - 175 mm
 Stroke, vertical table  +/ - 90
 Stroke, slide  130 mm
 Dimension w x d x h  2040 x 3120 x 2400 mm
 Weight without pay-off unit  ca. 5900 kg
 Upgradable to max. CNC axes        24
