Wave spring machine / Ring Coiling Machines-SNA

  • Model：FORMINGTECH-SNA
Inquiry
Please contact Formingtech to obtain a quotation on this product.
Height & Talent Co., Ltd. (Formingtech®)
Address：1F-2, No.77, Sec.1, Xintai 5th Rd. Xizhi Dist., New Taipei City, 22101, Taiwan
Phone：+886-2-26983788
Fax：+886-2-26983787
Email：info@formingtech.com

Product Introduction

Wave spring machine / Ring Coiling Machines-SNA Application

 wave springs



Benefits SNA Series

(1) Optimized unit costs thanks to increased output capacity and machine availability ensure high profitability

(2) Exceptional variety of parts, production of rings and wave springs of the most diverse geometries and even the smallest diameters

(3) Cutting position can be selected based on product requirements / programmable wave height and wave course / a wave shape other than the sinusoidal

(4) shape can be programmed

(5) High operating convenience with a simplified and optimized set-up and an increased machine availability

(6) High-end control WPS 3.2 EasyWay / Integrated shearing cut (SNA 16) / Repeatability of many settings as exchangeable magazine can be changed as a whole / Central nut for clamping rollers / Production monitoring via laser / Tools made of tungsten carbide

(7) Innovative and modern machine design

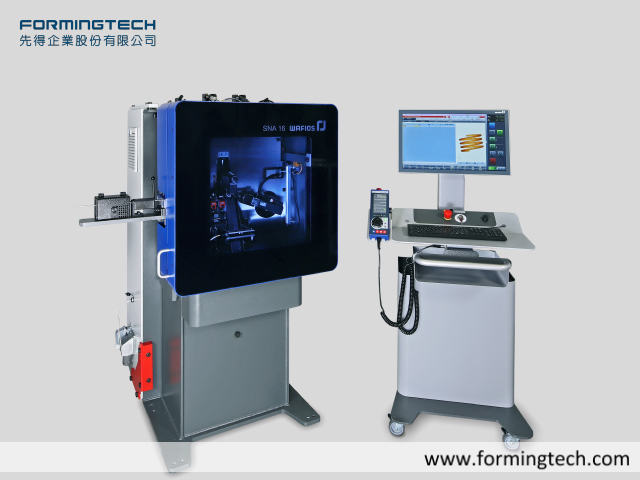

 SNA 16
 Minimum profile cross-section  0,5 x 0,2 mm
 Maximum profile cross-section (max. Rm = 2,000 N/mm²)       2,0 x 0,75 mm
 Maximum profile cross-section for wave rings  2,0 x 0,6 mm
 Infeed speed  max. 140 m/min.
 outer ring diameter  ca. 7 - 50 mm
 outer ring diameter for wave rings  ca. 7 - 50 mm
 Output of single-turn rings (depending on infeed length)  max. 275 pcs./min max.
 Cutting force of cutting unit  7 KN

 SNA 26
 Minimum profile cross-section  ca. 1,0 x 0,5 mm
 Maximum profile cross-section (max. Rm = 2,000 N/mm²)        4,0 x 1,5 mm
 Maximum profile cross-section for wave rings  4,0 x 1,25 mm
 Infeed speed  max. 120 m/min.
 outer ring diameter  ca. 15 - 100 mm
 outer ring diameter for wave rings  ca. 20 - 100 mm
 Output of single-turn rings (depending on infeed length)  max. 250 pcs./min max.
 Cutting force of cutting unit  45 kN
 SNA 36
 Minimum profile cross-section  2,5 x 0,6 mm
 Maximum profile cross-section (max. Rm = 2,000 N/mm²)        9,0 x 3,0 mm
 Maximum profile cross-section for wave rings  8,0 x 1,3 mm
 Infeed speed  max. 100 m/min.
 outer ring diameter  ca. 45 - 320 mm
 outer ring diameter for wave rings  ca. 50 - 300 mm
 Output of single-turn rings (depending on infeed length)  max. 200 pcs./min max.
 Cutting force of cutting unit  125 kN
